Can I implement a transformer by just reading the paper?

2024-11-03 Mark Henry

my transformer: source code on github, play with a trained model on replicate

I want to implement a transformer and write a blog post about it to demonstrate competence. The fastest way to implement a transformer is to copy someone else's implementation, but this does not demonstrate competence. Instead of reaching a reasonable compromise via learning through imitation, can I brute-force my way through the learning process while referring to Attention Is All You Need?

For purposes of this project, using others' code for describing the modules and network architecture described in the paper is Cheating. I've also turned off my Github Copilot completions. Not Cheating: using others' code for everything else, including boilerplate like the tokenizer and libraries like torch.

I will set my goal very modestly: a next-token predictor that implements the transformer architecture and performs better than chance.

Step 1: get a dataset

I will use the popular and small WikiText-2.

Step 2: tokenization and embedding

I am happy to use someone else's library for this. Claude:

import torch.nn as nn
from transformers import BertTokenizer

tokenizer = BertTokenizer.from_pretrained('bert-base-uncased')
example_text = ["Hello, world!"]
encoded_inputs = tokenizer(example_text, padding=True, truncation=True, return_tensors="pt")

>>> encoded_inputs['input_ids']
tensor([[ 101, 7592, 1010, 2088, 999, 102]])

Swell. Now for an embedding layer:

embedding = nn.Embedding(vocab_size, embedding_dim)
embedded = embedding(input_ids)

>>> embedded
tensor([[[ 4.7014e-01, -1.1465e+00, -1.9573e+00, ..., 1.1944e-01,
-1.0242e-01, 1.2833e+00],
[ 2.1889e-01, 7.9508e-01, 7.3903e-01, ..., 1.0361e+00,
1.6838e-02, 2.3557e-01],
...

The output from this embedding layer is currently garbage. It will be trained later. We have the option here of using pretrained embeddings but I've arbitrarily decided to train my own. Later we can try it with pretrained embeddings and see if it makes a difference in our final score. Regardless we now have the means to turn each token into a vector representation.

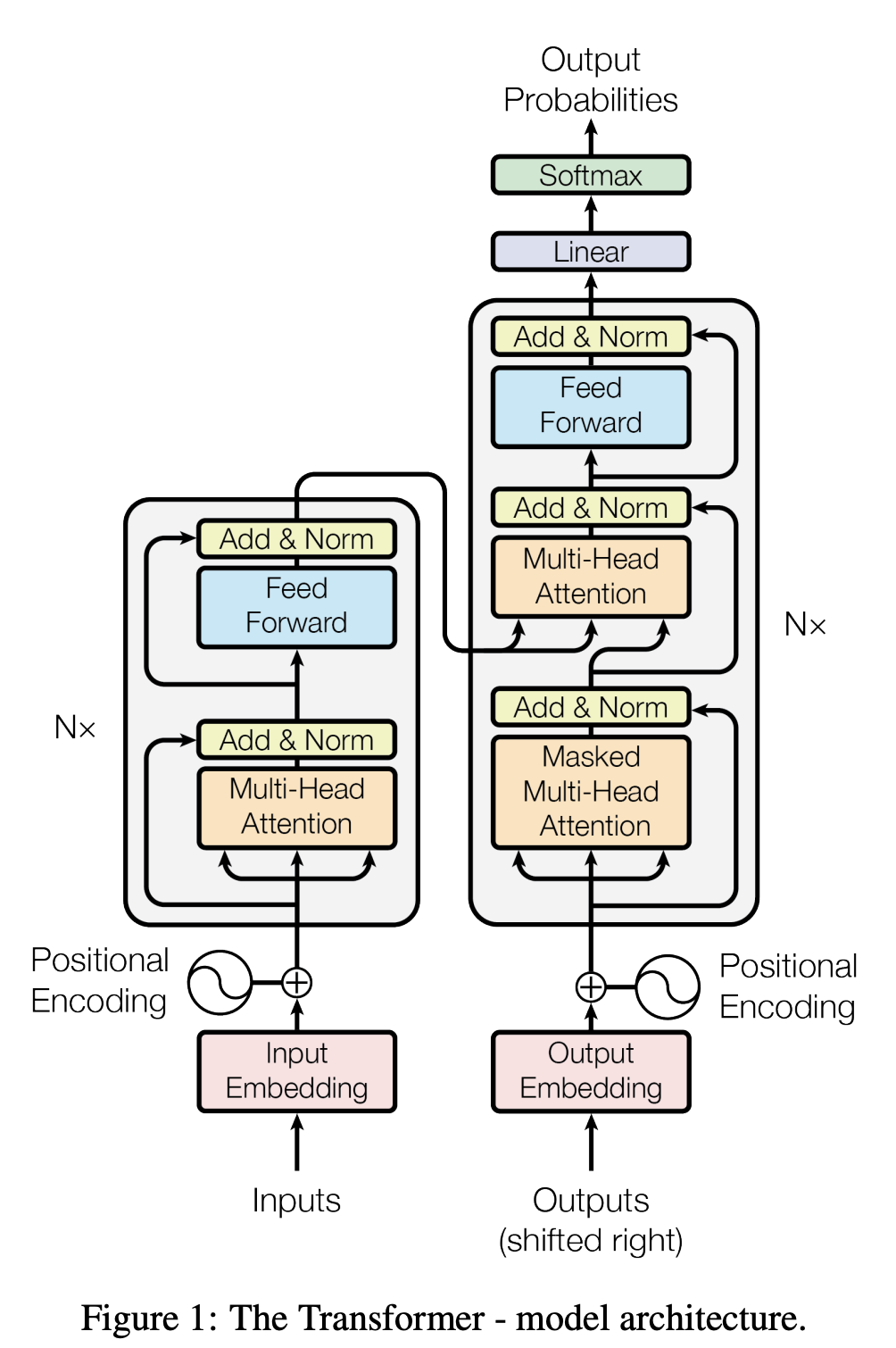

Figure 1 in Attention Is All You Need (AIAYN) shows two embeddings, one labeled Input and one labeled Output. I don't understand why there's two inputs to this transformer; in my mind, the input is a list of tokens, and the output is (logits for) a single token (included in Figure 1 as "Output Probabilities"). Why are there two inputs to the transformer in Figure 1, and why is one of the inputs labeled "Outputs (shifted right)"?

The next paragraph attempts to explain this:

This isn't helpful to me. I thought that when a token was generated, it was appended to the context, and the transformer runs again with this new context.

This also is confusing nonsense to me, which means my assumption about how this transformer architecture works must be incorrect. I think I remember hearing something about encoder-decoder vs decoder-only, so I'm guessing the transformers I'm familiar with are decoder-only.

A quick conversation with Claude confirms this. AIAYN is showing applications to machine translation, as much research did at the time; if I want to make a GPT-like model I will want a decoder-only solution.

This alleviates my ignorance somewhat but now I have to make a judgment call. Do I want to strictly implement AIAYN or do I want to make a gpt-like model? My preference is clear. So I have set an even more complicated challenge for myself: I'm going to use AIAYN to implement a model whose architecture is not specifically described in AIAYN.

AIAYN mentions that the dimensionality of the embeddings, and of all of the rest of the model, is 512. It's fortunate that this is arbitrary because I will be using the dimensionality of the BeRT embedding that I'm using (which is 768, that is, 512 + 256).

Step 3: Positional Encoding

Each token's embedding vector needs to be affected according to its position in the input. From an information-theoretic perspective, it makes sense that combining two pieces of information like this might not destroy either one, and that we can trust the model to learn to interpret both the meaning of the word and its position in the context. But it still feels weird. How can it be that we can change the embedding vector without changing the meaning of the token?

As the paper notes there is an infinite variety of positional encoding strategies. I'll use the one they use. Claude:

def positional_encoding(max_seq_len, d_model):
    # PE(pos, 2i) = sin(pos / 10000^(2i/d_model))
    # PE(pos, 2i+1) = cos(pos / 10000^(2i/d_model))

    position = np.arange(max_seq_len)[:, np.newaxis]
    div_term = np.exp(np.arange(0, d_model, 2) * -(np.log(10000.0) / d_model))

    pos_encoding = np.zeros((max_seq_len, d_model))
    pos_encoding[:, 0::2] = np.sin(position * div_term)
    pos_encoding[:, 1::2] = np.cos(position * div_term)

    return torch.FloatTensor(pos_encoding)

Irritatingly, we are overloading the term "dimension" here. "Dimension" usually refers to the size of a vector (here d_model is 768) but in the context of the positional encoding it also refers to the element index (that is, 2i or 2i+1).

I'm still pondering the information theory here. The positional encodings' magnitudes are in the range -1 to 1. The embeddings are random right now because I haven't trained them yet but they have a magnitude of 25 or 30-ish. So unless something changes under training, the positional encoding will be just a small perturbation, just a little flavor on the embeddings. I guess that if two concepts ended up too close to each other in the embedding space, then that risks confusion when positional encoding is applied. However, this situation would be penalized in training, and gradient descent would move these concepts farther apart until they were no longer too close. At first I didn't grok this but the more I think about it the more sense it makes.

Step 4: Attention

One second, I have to watch the 3blue1brown video on attention. It's a great video. Although I have to say that all the explanations of attention I've seen so far tend to slip past me. But there's nothing like implementation to force you to understand, so, onward.

AIAYN prescribes h=8 attention heads with K dimensionality = d_model / h. In their case dim_K comes out to 64; in my case 768 / 8 is 96. This seems fine.

Using Claude for this part risks information leaking into the challenge so it is against my self-imposed rules. If this code seems suddenly unconventional, that's why.

class Transformer(nn.Module):
    def __init__(self, model_dimension, vocab_size,
            max_seq_len=64, num_attention_heads=8):
        self.max_seq_len = max_seq_len
        self.d_model = model_dimension
        self.embedding = nn.Embedding(vocab_size, model_dimension)
        self.attention_heads = [
            Attention(...) for _ in range(num_attention_heads)
        ]

    def forward(self, token_ids):
        embedded = self.embedding(token_ids)
        pe = positional_encoding(self.max_seq_len, self.d_model)
        pe_out = embedded + pe
        attention_values = [head(pe_out)
            for head in self.attention_heads]
        # TODO return a value

So far so good... as far as I know. There's no way to test this yet. Turning now to the Attention module:

class Attention(nn.Module):
    def __init__(self, seq_len, model_dimension, key_dimension,
            *args, **kwargs):
        super().__init__(*args, **kwargs)
        self.seq_len = seq_len
        self.model_dimension = model_dimension
        self.key_dimension = key_dimension
        self.Q = nn.Linear(model_dimension, key_dimension)
        self.K = nn.Linear(model_dimension, key_dimension)
        self.V = nn.Linear(model_dimension, model_dimension)

        mask = torch.ones(self.seq_len, self.seq_len)
        # Make it lower triangular and invert
        self.mask: Tensor = torch.tril(mask) == 0

    def forward(self, input):
        scale = math.sqrt(self.key_dimension)
        attention_pattern = torch.matmul(
            self.Q(input), self.K(input).T) / scale
        masked_attn = attention_pattern.masked_fill(
            self.mask, float('-inf'))
        attention = nn.Softmax(dim=1)(masked_attn)
        return torch.matmul(attention, self.V(input))

I see from the torch documentation that nn.Linear will be randomly initialized, great. I don't know what the best way to make a triangular attention mask is in numpy so I did ask Claude for those few lines, while being careful to avoid "spoilers." I can't test this code yet but I did run random tensors through it in order to fix basic issues with dimensions and multiplications, and I got pretty far with that.

Step 5: implement feed-forward and linear layers

After gazing into the famous diagram for a bit, I wrote out the following code:

class DecoderLayer(nn.Module):
    def __init__(self, embedding_size, seq_len, num_attention_heads,
            hidden_layer_size=None, *args, **kwargs):
        super().__init__(*args, **kwargs)
        self.embedding_size = embedding_size
        self.seq_len = seq_len
        self.num_attention_heads = num_attention_heads
        self.attention_heads = [
        Attention(seq_len, embedding_size,
            embedding_size // num_attention_heads)
            for _ in range(num_attention_heads)
        ]
        self.layer_norm = nn.LayerNorm([seq_len, embedding_size])
        self.hidden_layer_size =
            hidden_layer_size or 4 * embedding_size
        self.feed_forward = nn.Sequential(
            nn.Linear(embedding_size, self.hidden_layer_size),
            nn.ReLU(),
            nn.Linear(self.hidden_layer_size, embedding_size)
        )

    def forward(self, input):
        attention_values = sum(head(input) for head in self.attention_heads)
        attn_add_and_norm = self.layer_norm(input + attention_values)
        ff_value = self.feed_forward(attn_add_and_norm)
        return self.layer_norm(attn_add_and_norm + ff_value)

Was very pleased to see that torch provides LayerNorm. That saves me some time.

Changes to Transformer were also implied:

class Transformer(nn.Module):
        def __init__(self, embedding_size, vocab_size, pad_token_id,
            seq_len=64, num_attention_heads=8, num_layers=6, *args, **kwargs):
        super().__init__(*args, **kwargs)
        self.seq_len = seq_len
        self.embedding_size = embedding_size
        self.embedding = nn.Embedding(vocab_size, embedding_size)
        decoder_layers = nn.Sequential(
            *[DecoderLayer(embedding_size, seq_len, num_attention_heads, *args, **kwargs)
            for _ in range(num_layers)])
        self.decoder = nn.Sequential(
            decoder_layers,
            nn.Linear(embedding_size, embedding_size),
            nn.Softmax(dim=1)
        )
        self.pad_token_id = pad_token_id

    def forward(self, token_ids):
        embedded = self.embedding(token_ids)
        pe = positional_encoding(self.seq_len, self.embedding_size)
        encoded = embedded + pe
        return self.decoder(encoded)

This more or less completes the skeleton of the transformer, which I am very pleased about! Now I just have to rig up the training.

Step 6: train

I had Claude work up a basic training loop but it let slip that I misunderstood the final Linear layer. It's there to project the embedding back to the vocabulary size. I guess that makes sense :)

Loading tokenizer and dataset...
Epoch 1: 4%|█▌ | 199/4590 [01:27<31:44, 2.31it/s]

It's working!! I trained for a minute on my Macbook as a proof of concept.

Chat with the model (type 'quit' to exit)
You: >? hello, world!
Model: 1914clave please indicating styx throughout commodore كwriter eddie montreal toulon learners 1849 maltese records weaken cease stirred ר allmusic latest how travels evan emirates wrestle adamła homestead firearm reidmarket whipping romans mscivate enthusiasts filmmakerぬlux pixel toilets commodityilis linux masked ল間 revived

Noise, cool. And then I gave it a proper training run.

Loading tokenizer and dataset...
Epoch 1: 100%|████████| 4590/4590 [33:20<00:00, 2.29it/s]
Epoch 1 Average Loss: 9.9419
Model saved to models/transformer_20241022_160257.pt
Epoch 2: 100%|████████| 4590/4590 [33:25<00:00, 2.29it/s]
Epoch 2 Average Loss: 9.9417
Model saved to models/transformer_20241022_160257.pt
Epoch 3: 100%|████████| 4590/4590 [33:26<00:00, 2.29it/s]
Epoch 3 Average Loss: 9.9386
Model saved to models/transformer_20241022_160257.pt

I don't think that worked. The next step is to go through the code and make the following changes.

Sidequest 1: check my work to see if I flipped an axis somewhere or misinterpreted a diagram.
Sidequest 2: I wrote the transformer in a very straightforward way: it takes in a list of token ids and outputs softmaxed probabilities. Sidequest 2 is to implement batching.
Sidequest 3: Learn some more pytorch and speed the transformer up through optimizations.

The following changes were implemented:

implemented batching
I didn't realize LayerNorm was stateful; I thought it was just a math operation like softmaxing. This means I actually need two LayerNorm objects in the DecoderLayer, oops

I observed a 2x speedup on this GPU:

Epoch 1: 97%|██████████| 1477/1530 [17:57<00:38, 1.38it/s, loss=10.303]

However, our loss and perplexity are decreasing VERY slowly, if at all—10.3 is basically randomly choosing the tokens. At this point I flailed around for a day, unsure if architectural issues were making my transformer untrainable, but unwilling to show the code to Claude and accept spoilers. But then I tried greatly decreasing the model's size, down to 64 tokens of context, 4 heads of attention, 3 layers, and an embedding size of 256. (I now realize that if I'm not using the bert embeddings, there's no reason to imitate their embedding dimension of 768.)

Epoch 1: 100%|████████| 1669/1669 [01:21<00:00, 20.60it/s, loss=5.306, epoch_loss=6.172, epoch_perplexity=479]
...
Epoch 10: 100%|████████| 1669/1669 [01:20<00:00, 20.68it/s, loss=3.661, epoch_loss=3.871, epoch_perplexity=48]
Validating: 100%|███████| 171/171 [00:02<00:00, 66.95it/s]

Epoch 10 Complete:
Train Loss: 3.8714 (ppl: 48)
Val Loss: 4.3227 (ppl: 75)
...
Epoch 15: 100%|████████| 1669/1669 [01:24<00:00, 19.79it/s, loss=3.412, epoch_loss=3.079, epoch_perplexity=22]
Validating: 100%|███████| 171/171 [00:02<00:00, 66.22it/s]
Epoch 15 Complete:
Train Loss: 3.0788 (ppl: 22)
Val Loss: 4.4840 (ppl: 89)
...
Epoch 20 Complete:
Train Loss: 2.2708 (ppl: 10)
Val Loss: 4.8498 (ppl: 128)

It's a classic overfitting pattern! Hallelujah! My transformer is learni—

You: >? hello, world!
        Model: [SEP] [SEP] [SEP] [SEP] [SEP] [SEP]

Nope.

Because the [SEP] token appears in every training example, the model has learned to score free points by going all-in on [SEP] every round. I added code in the training example tokenizer that snips out all special tokens, and:

Epoch 3 Complete:
Train Loss: 5.2304 (ppl: 187)
Val Loss: 4.6884 (ppl: 109)

You: hello, world!
Model: that.. could the the be revised firstita became from should a " be do. able abandoned. to to the the be line possibility, of of, the the, book nation ' to of made obtain him the that. < the un un

Yes! Unstuck again. We see that the model has learned basic word frequencies after three epochs of training. I put another couple of quarters into the training machine, this time training a model equal in size to AIAYN.

Epoch 4 Complete:
Train Loss: 6.8273 (ppl: 923)
Val Loss: 6.3457 (ppl: 570)
...
Epoch 14 Complete:
Train Loss: 6.8131 (ppl: 910)
Val Loss: 6.3486 (ppl: 572)

You: >? hello, world!
Model: the has,. ak river un > ak of stories un a of. old = to and and tok number to., > ( to failed in and and the ' the the the and.,, the and ink ofk

The model plateus quickly before overfitting. This is frustrating. We're going to try using pretrained embeddings.

Epoch 5 Complete:
Train Loss: 6.8242 (ppl: 920)
Val Loss: 6.3489 (ppl: 572)

This turned out materially identical, although it reached its plateau within one epoch.

Claude is more optimistic than I am, saying that coding mistakes are unlikely, and that if it learned down to 600 perplexity then it is likely just fine and only needs a better training regime. We will start with more data. WikiText-2 is less than 1% of the size of the corpus used to train in AIAYN. So let's try WikiText-103.

Epoch 2 Complete:
Train Loss: 7.1984 (ppl: 1337)
Val Loss: 7.1002 (ppl: 1212)
...
Epoch 6 Complete:
Train Loss: 7.1946 (ppl: 1332)
Val Loss: 7.0981 (ppl: 1210)

Dang it.

Step 7: give in

At this point I am willing to fold and ask Claude to review my transformer code. I will preregister 90% confidence that there are no structural issues that are causing the learning to stall out—I've done a lot of troubleshooting of the code over the last few workdays and although I've deliberately omitted a lot of typical structure that would greatly improve the performance of the transformer, I didn't see any smoking guns.

Claude said:

Missing Attention Head Scaling: The most significant issue is in the DecoderLayer's forward pass. You're summing the attention heads without scaling them. This means each head's contribution is effectively amplified by the number of heads, which can lead to extremely large values. This could cause gradient instability during training. You should divide by the number of heads: attention_values = torch.stack([head(input) for head in self.attention_heads]).sum(0) / self.num_attention_heads
Positional Encoding Addition: In the Transformer's forward pass, you're adding positional encodings directly. While this works, the scale of the positional encodings might be too large compared to the embeddings, especially early in training. Consider adding a learned scaling factor or using layer normalization after adding positions.
Missing Dropout: While this might be one of your intentional simplifications, the lack of dropout anywhere in the model could lead to overfitting, which might explain why training stalls at a certain perplexity.
Mask Padding Tokens: You might want to also mask padding tokens if you're using them (I see you have pad_token_id in the Transformer class but it's not being used for masking).
Missing Pre-Attention Layer Norm: In the current architecture, layer normalization happens after attention. Many modern transformers use pre-layer normalization (normalizing before attention and FF), which often leads to more stable training.
Linear Layer Initialization: There's no explicit initialization for the linear layers (Q, K, V, and feed-forward networks). While PyTorch's default initialization might work, for transformers it's often beneficial to use specific initialization scales, especially for the output projection.

Cool! Although unfortunately I lose Bayes points because the attention head scaling counts as a major structural issue that inhibits training. Let's examine these suggestions.

Baseline. Validation set perplexity 529 after 1 epoch
Add attention head scaling. AIAYN doesn't mention this—it is assumed that no one would be so foolish as to sum the attention values together and call it a day. But multiple heads of attention will completely drown out the influence of the residual connection (input + attention_values in my code), and with simple summing the onus on the attention heads to learn to be very quiet and subtle. So, what results? With attention head scaling, validation set perplexity falls from 410 after 2 epochs to 133 after 4 epochs. That's an amazing improvement! However its completions are still babble, so let's keep driving that perplexity down.
Positional encoding scaling. I will revisit this if I revisit learned embeddings. But for the moment we are using pretrained embeddings so there's not much reason to worry about positional encodings drowning out the embedding values.
Dropout. Dropout was explicitly described in AIAYN but I believe we should be able to get further without it. I may add this in the future.
Masking padding tokens. This we should definitely get into. After implementing this I ran some training again. With attention head scaling and padding token masking, validation set perplexity 580 after 1 epoch, ppl 99 after 7 epochs, 60 after 1 epoch of wikitext-103. 60 perplexity is progress but not yet enough for complete phrases. Because I'm not overfitting, dropout is not necessary for this project. We're not short on data at all; WikiText-103 is huge.

Step 8: change to GPT-2 tokenizer and change to sliding-window dataset strategy

I asked Claude for advice and somehow it convinced me that the gpt-2 tokenizer is "better" for next-token-prediction tasks. (Evidence for persuasion capabilities??) We also changed the dataset strategy to use a sliding window over the text, which hews much closer to the task I want to train for, which can only be a good thing. This makes the dataset colossally larger, 2.4M examples. I started with WikiText-2, but overfitting occurred in a single epoch:

Epoch 1 Complete after 3h16m:
Train Loss: 2.8728 (ppl: 18)
Val Loss: 5.2471 (ppl: 190)

I restarted the training, and early termination led to the lowest loss so far, and the first coherent phrase I've observed from the model!!

You: kepler studied the behavior of planetary bodies
Model: ology studied the activity of Jupiter bodies

High on confidence, I switched to WikiText-103 let the training run overnight.

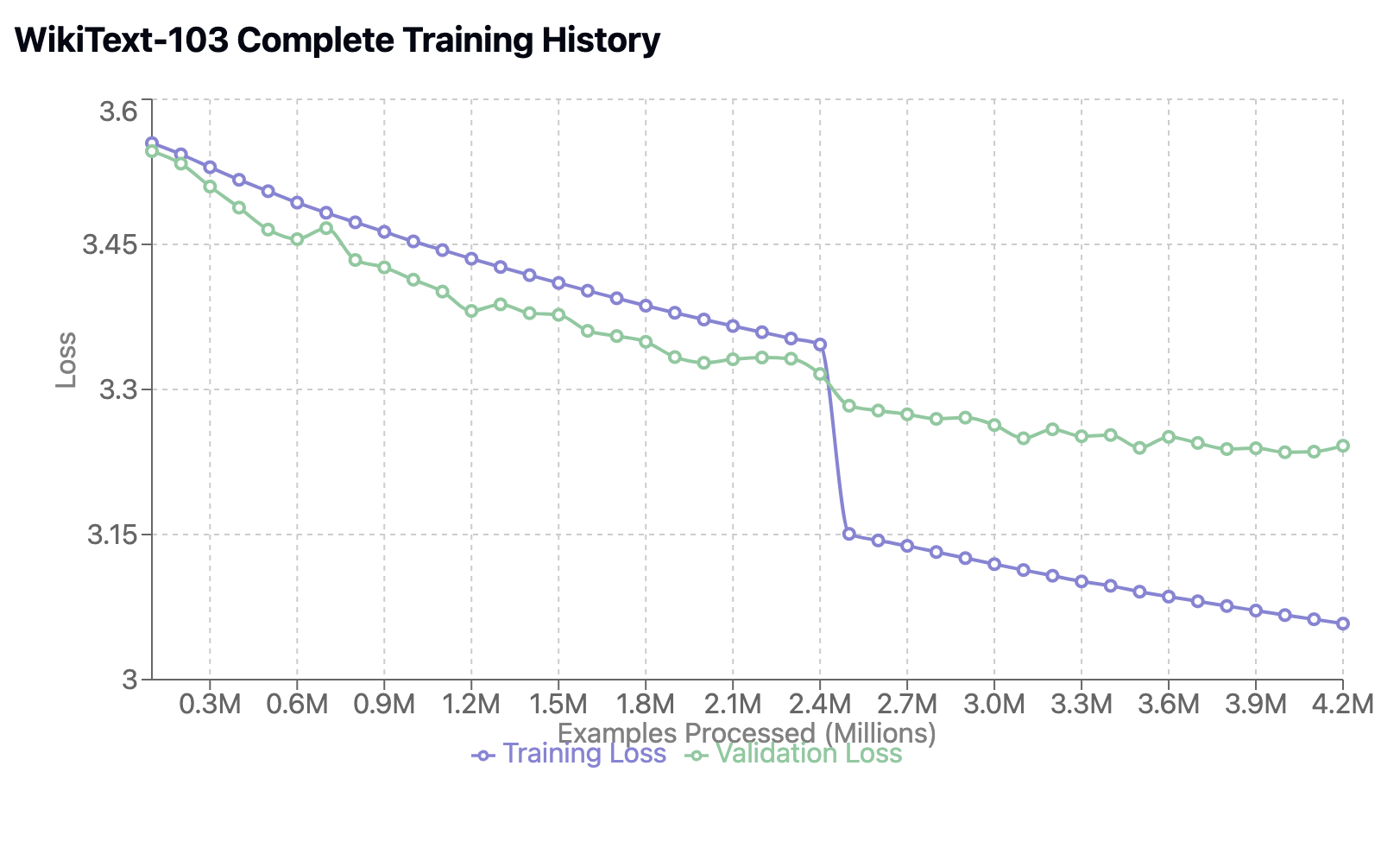

Big Training Run — Big training run, including discontinuity where I doubled the number of GPUs I was using

After leaving the training running overnight, I realized that

I set up the relationship between the input and the target incorrectly. I was rolling the first token of the input to the back so that the first token of the input became the last token of the target. This trained the model to repeat the prompt! Big mistake! It did a great job of repeating the prompt, at least...
Because all examples were full context windows with no padding, the model was uncomfortable with prompts that begin with a lot of padding (i.e. any prompt shorter than the maximum context length).

I reworked the dataset/dataloader to rectify the training issue and introduce short prompts into the mix. I will continue training from the current model weights because I think that despite the training snafu the model has good knowledge encoded in it that we can leverage—

Epoch 10: 0%| | 477/2358515 [05:38<373:46:15, 1.75it/s, loss=1.042, avg_loss=1.169, ppl=3, examples=35775]

Uhhh?? Three????? Yes. Yes! After less than twenty seconds of training, the model perplexity dropped from hundreds of thousands to 3. My explanation for this is that overnight, the model was largely learning next-token prediction for tokens 0 through 126, but token 127 was forcefully overridden by the training snafu. Once the snafu was resolved, the model relaxed back into next-token prediction for all outputs.

It immediately started to show signs of overfitting so I stopped training it after just 100k examples. That's all it took to untangle this horrible mistake and get an incredible perplexity of 3!

You: four score and seven
Model: goals in the final two games of the season . <|endoftext|>

You: The U.S. state of Illinois held an election on November 3, 1964, for all 177 members of the state's House of Representatives for the 74th Illinois General Assembly, alongside other state and federal elections. Due to
Model: the lack of a candidate for the district , the district was ineligible for the district to be created by the state 's voters . <|endoftext|>

You: Material science is a branch of technology that deals with
Model: the science of science , technology , and technology .

These are FANTASTIC completions.

Brief Q&A

How much did it cost? About $50 I think. I did all my coding on a datacrunch.io server with Intellij IDEA remotely attached, so the meter was running about 40 cents an hour whenever I was working on this project, plus I left the meter running overnight accidentally once, plus storage costs, plus more expensive GPUs for big training runs.

Lessons learned? I thought that "getting the code right" would be difficult. It turned out that training was where I spent most of my time, even with Claude's assistance. Long feedback loops are an absolute killer. It would have saved some time to carefully check the inputs and targets my code was generating.

Can you ask it questions? Let's see.

You: >? What is 2+2?
Model: e4 ! ? ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! !

You: >? What is mathematics?
Model: " . <|endoftext|><|endoftext|>

Not really. It's enthusiastic at least but needs a fine tune.

You did this without dropout. What were the consequences? Dropout is great in circumstances where you need to make the most of limited data. But unlike the authors of AIAYN I don't have to worry about overfitting—I have WikiText-103 which is, as far as a model of this size is concerned, unlimited data.

Can I see some more completions? Sure.

You: >? The cotton gin was invented in
Model: <|endoftext|><|endoftext|>

You: >? The cotton gin was invented in 18
Model: 54 by John Brown . <|endoftext|>

You: >? Because of this,
Model: supported by the United States , the United States , and the United Kingdom . <|endoftext|>

You: >? Wikipedia, the
Model: world 's most popular book . <|endoftext|>

You: >? Marina Bay MRT station is a Mass Rapid Transit (MRT) interchange station on the North–South (NSL),
Circle (CCL) and Thomson–East Coast (TEL) lines in Singapore. Located in the Downtown Core district near Marina
Bay, it serves the Marina One Residences, Marina Bay Suites and the Marina Bay Financial Centre. It was one of
the last stations to be completed
Model: in the Singapore Strait . <|endoftext|>

It's not very talkative. I should downweight the eos token or do a fine tune but I probably won't.

Reflections on methodology? AIAYN is not a technical manual nor a tutorial. It assumes that the reader has a lot of context from previous papers. I set a challenge for myself but I had to erode the rules over time. For this reason I don't endorse using AIAYN as a technical manual, obviously. However, I do endorse setting yourself a silly challenge and then eroding it over time until you get the job done. By making this project difficult for myself, I learned a ton.

Conclusion

I did the architecture in hard mode and the training in easy mode. I deliberately simplified the model's architecture but achieved a perplexity of 3 for next-token prediction of the WikiText dataset using a model size of just 43M parameters. I'm now equipped to answer interview questions about ML engineering and undertake more ambitious training projects.

The code for this project is public at https://github.com/mark-henry/transformer.
